Tanvir Nickel Alloys, a leading manufacturer and supplier located in Cairo, Egypt, is all about high-quality Titanium Grade 5 Tube Fittings. These fittings are celebrated for their remarkable strength, resistance to corrosion, and lightweight nature. Crafted with cutting-edge precision forging and machining techniques, they guarantee top-notch dimensional accuracy, a smooth surface finish, and dependable performance even in tough industrial settings. Tanvir Nickel Alloys offers Titanium Grade 5 Tube Fittings that cater to various sectors, including aerospace, chemical processing, marine, and medical industries, ensuring durable and long-lasting connections. Their unique blend of mechanical strength, corrosion resistance, and thermal stability makes them perfect for critical tubing systems that face harsh conditions.
These Titanium Grade 5 Tube Fittings are made up of about 90% titanium, 6% aluminum, and 4% vanadium, which gives them outstanding strength, corrosion resistance, and durability. They boast a tensile strength of up to 950 MPa, a yield strength of around 880 MPa, and an elongation of 10–15%. This alloy remains mechanically stable even under high temperatures and aggressive chemical environments, while also providing excellent fatigue resistance. These features make Titanium Grade 5 Tube Fittings a top choice for demanding applications that require reliable, long-term performance in structurally critical and corrosive systems.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |

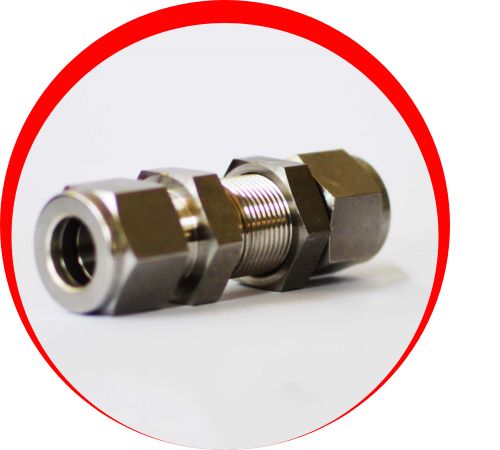

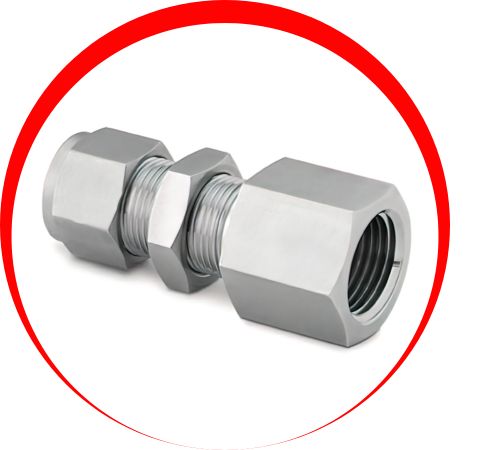

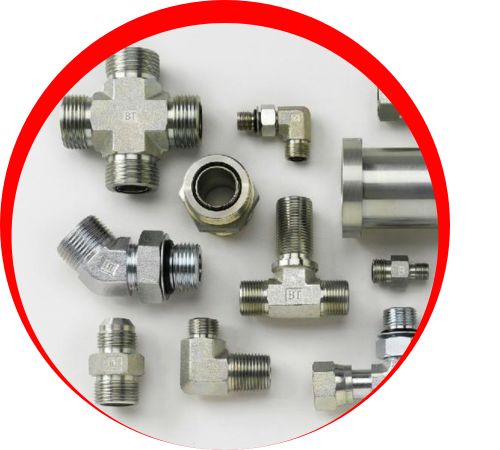

| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Tanvir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Grade 5 Tube Fittings in Cairo, Egypt, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Egypt, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
You’ll find Titanium Grade 5 Tube Fittings widely used in industries that need corrosion-resistant, high-strength, and lightweight tubing solutions. They’re commonly found in aerospace hydraulic and fuel systems, chemical processing plants, and marine piping systems that are exposed to seawater. In the medical and pharmaceutical fields, they’re utilized for high-purity piping and instrumentation connections. Plus, they’re essential in petrochemical, power generation, and desalination applications where extreme temperatures, high pressure, and corrosive media are a concern, ensuring reliable and long-lasting performance. Their combination of strength and corrosion resistance truly sets them apart.
