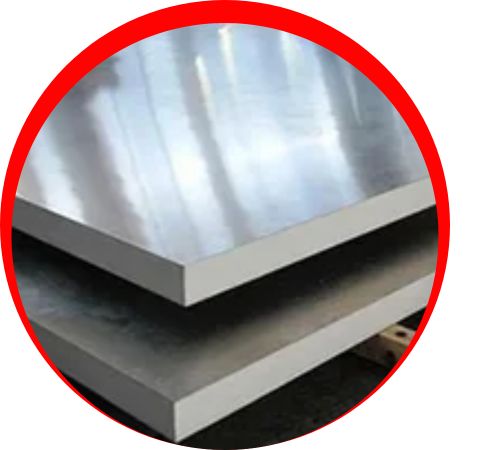

Tanvir Nickel Alloys, a reputable manufacturer and supplier located in Cairo, Egypt, specializes in top-notch Nimonic 90 Sheets and Plates. These products are celebrated for their outstanding high-temperature strength and resistance to oxidation. Designed to excel in extreme conditions, they find their place in industries like aerospace, power generation, and chemical processing. Tanvir Nickel Alloys is committed to delivering products with exceptional dimensional accuracy, surface finish, and durability. Their Nimonic 90 Sheets and Plates are perfect for demanding applications where mechanical stability, corrosion resistance, and creep resistance are vital for long-lasting performance.
The composition of Nimonic 90 Sheets and Plates primarily includes nickel, chromium, and cobalt, with added titanium and aluminum to boost strength and oxidation resistance. They boast a high tensile strength ranging from 900 to 1100 MPa and impressive creep resistance at temperatures reaching up to 950°C. This material also provides excellent hardness, good fatigue strength, and remarkable corrosion resistance in high-stress and oxidizing environments, making it ideal for extended use in harsh industrial settings.
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | Ni | Cr | Co | Ti | Al | C | Si | Cu | Fe | Mn | B | S | Zr | Pb |
| Nimonic 90 | Bal | 18-21 | 15-21 | 2-3 | 1-2 | 0.2 max | 1.0 max | 0.2 max | 1.5 max | 1.0 max | 0.02 max | 0.015 max | 0.15 max | 0.0020 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 1150 MPa | 725 MPa | 30% |
| Grade | Density | Specific Gravity | Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | Electrical Resistivity (microhm-cm (at 68 Deg F) | Melting Point (Deg F) |
| Alloy 90 | 8.18g/cm³ | 1370°C | 12.7 μm/m °C (20 – 100°C) | 82.5 kN/mm² | 213 kN/mm² 227 / 240 kN/mm² |
| 0.296 lb/in³ | 2500°F | 7.1 x 10-6 in/in °F (70 – 212°F) | 11966 ksi | 30894 ksi 32924 / 34810 ksi |
| STANDARD | WERKSTOFF NR. | UNS |
| Nimonic 90 | 2.4632 | N07090 |
At Tanvir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic Sheet and Plates in Cairo, Egypt, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Egypt, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Nimonic 90 Sheets and Plates are extensively utilized in sectors that require both high strength and thermal stability. They play a crucial role in gas turbines, jet engines, exhaust systems, and heat exchangers in power plants. Additionally, these sheets are employed in chemical processing, furnace components, and marine applications where resistance to corrosion and oxidation is critical. Their ability to maintain mechanical properties at elevated temperatures makes them the go-to choice for the aerospace and energy industries, ensuring reliability, durability, and exceptional performance even in the toughest operational conditions.
