Tanvir Nickel Alloys, a leading manufacturer and supplier based in Cairo, Egypt, specializes in providing high-quality Monel Forged Fittings. Renowned for their durability and resistance to corrosion, these fittings are essential in industries requiring robust performance under extreme conditions. Our Monel Forged Fittings are meticulously crafted to meet international standards, ensuring reliability and longevity. Trusted by clients across various sectors, Tanvir Nickel Alloys is your go-to source for premium Monel Forged Fittings in the Egypt and beyond.
Specifications : ASTM B564 & ASME SB564
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

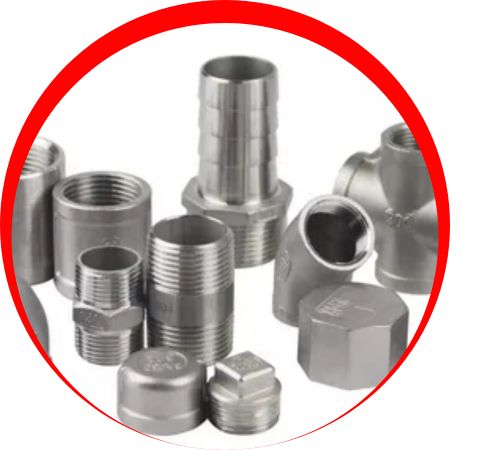

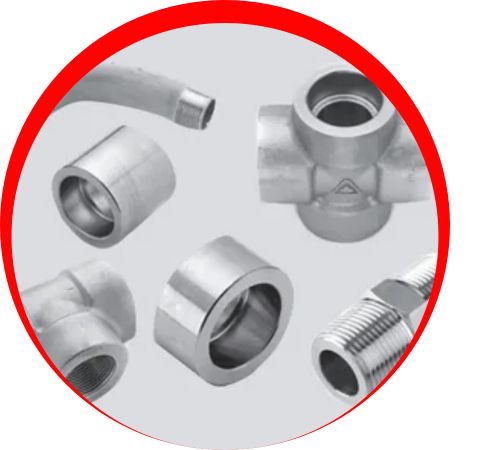

Type : Socketweld Fittings, Screwed-Threaded Fittings
Grades : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
These Monel Forged Fittings are made up of about 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, and silicon. This unique composition grants them exceptional resistance to corrosion in seawater, hydrofluoric acid, and alkaline solutions, all while maintaining excellent tensile strength, ductility, and fatigue resistance. Additionally, the forged fittings boast outstanding weldability, formability, and stability at high temperatures, making them perfect for high-pressure and critical applications in harsh, corrosive settings.
Contact us to get a quick quote for your requirement.

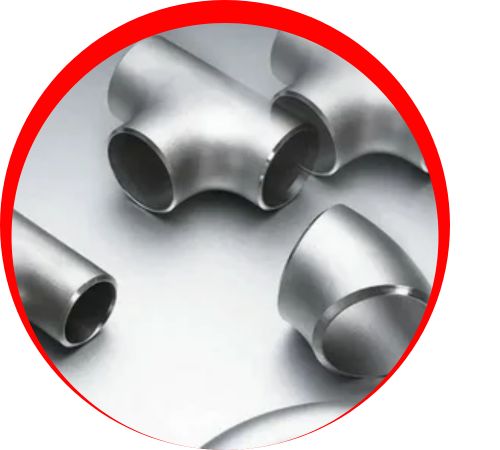

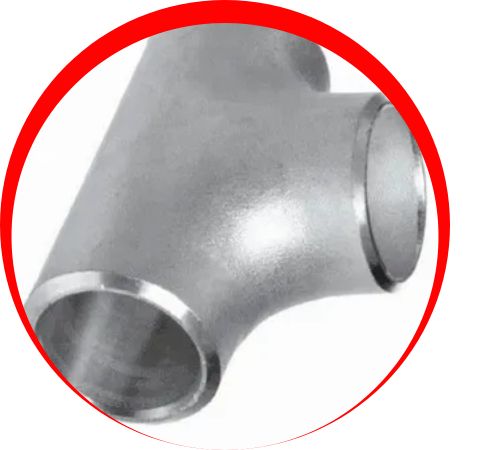

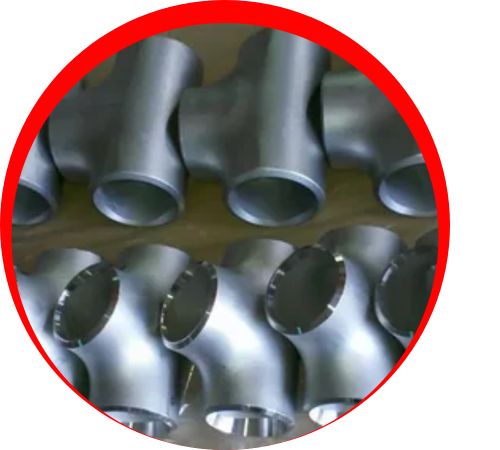

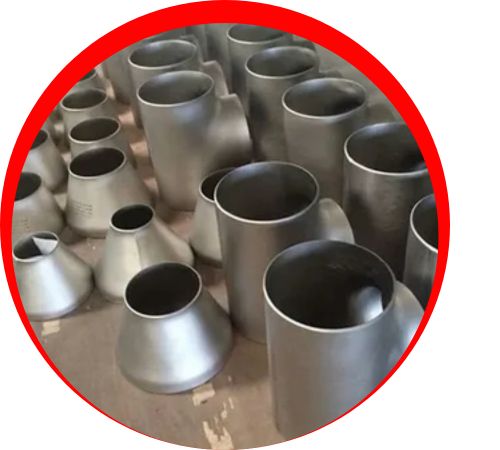

You’ll find Monel Forged Fittings widely used in chemical and petrochemical plants, oil and gas pipelines, marine systems, and offshore platforms where corrosion resistance and mechanical reliability are crucial. They’re perfect for elbows, tees, reducers, and couplings in piping systems that handle aggressive fluids. Plus, these fittings are also utilized in heat exchangers, pressure vessels, and industrial machinery, ensuring they deliver long-lasting performance, require minimal maintenance, and maintain operational efficiency in demanding industrial environments.
