Tanvir Nickel Alloys is a reputable manufacturer and supplier located in Cairo, Egypt, specializing in high-quality Inconel 600 Forged Fittings that are renowned for their outstanding durability and ability to withstand extreme conditions. These fittings are designed to operate efficiently in high-temperature and corrosive environments, ensuring that connections remain leak-proof and last for a long time. At Tanvir Nickel Alloys, every Inconel 600 Forged Fitting is crafted with precision and in line with global standards, meeting a variety of industrial requirements. With a strong commitment to quality, performance, and reliability, the company caters to sectors like chemical processing, petrochemical, power generation, and marine engineering.
The Inconel 600 Forged Fittings are primarily made up of nickel (around 72%), chromium (14–17%), and iron (6–10%), along with trace amounts of manganese, silicon, and copper. This unique composition gives them exceptional resistance to oxidation, carburization, and chloride-ion stress-corrosion cracking. On the mechanical side, they boast a tensile strength of about 655 MPa, a yield strength of 310 MPa, and an elongation of 40%. The alloy also maintains impressive toughness, formability, and mechanical stability, even when faced with high temperatures and pressures.
| Standards | ASTM, ASME |
| Designation | B564, SB564 |
| Dimension Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Grade | Inconel 600 Forged Fittings. |

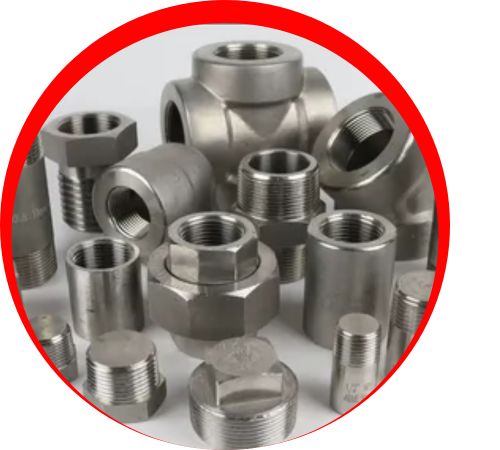

| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |

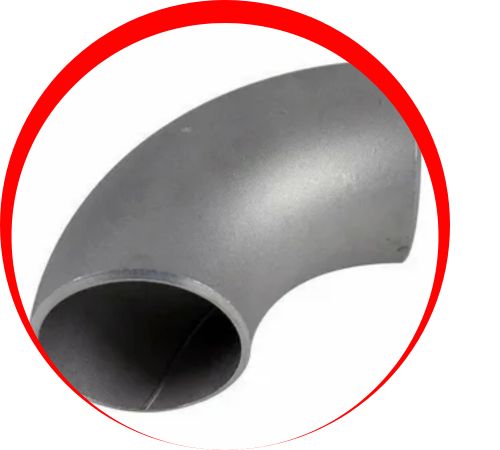

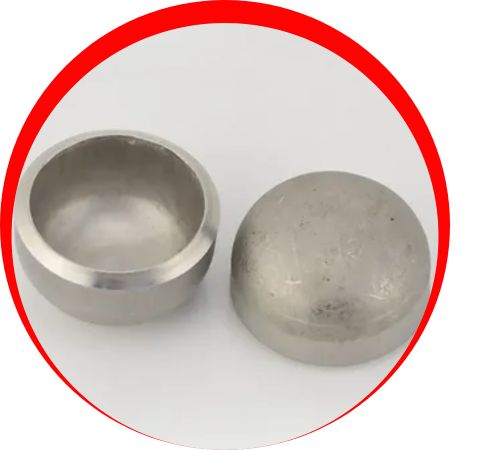

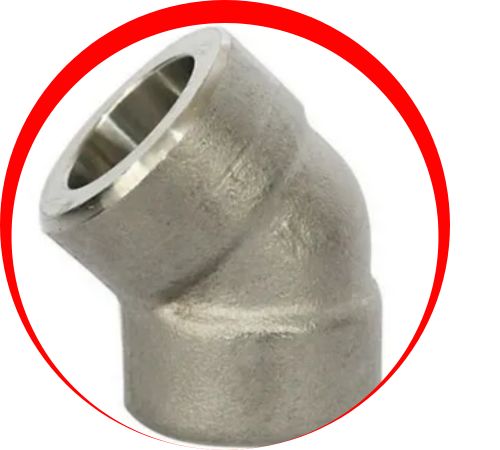

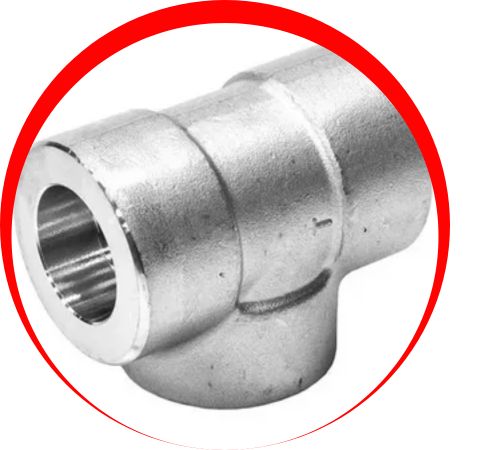

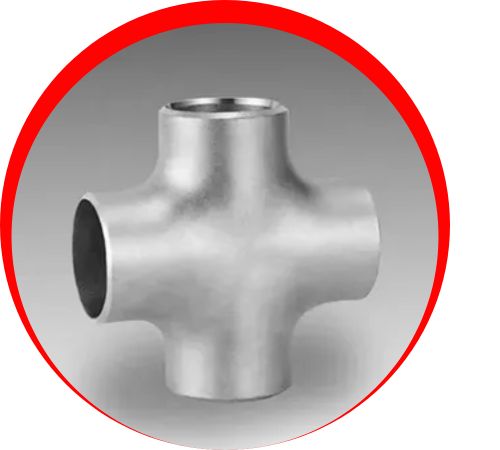

| Types of Forged Fittings | Elbow, Tee, Union, Cross, Swage Nipples, Coupling, CAP, Plug, Bush. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Tanvir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Forged Fittings in Cairo, Egypt, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Egypt, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 Forged Fittings are extensively utilized in industries that demand superior corrosion and heat resistance. They are perfect for applications in chemical processing units, heat exchangers, pressure vessels, and power plants. In the aerospace and marine fields, these fittings are used in systems that encounter high temperatures and aggressive media. They also find applications in nuclear reactors, furnaces, and components of gas turbines. Their ability to uphold integrity and performance under intense thermal and mechanical stresses makes Inconel 600 Forged Fittings a top choice for critical and high-performance industrial applications.
